Fuel level data
Capacitive measurement for gasoline and diesel fuel; measurement error no more than 1%.
EDVADO HARDWARE

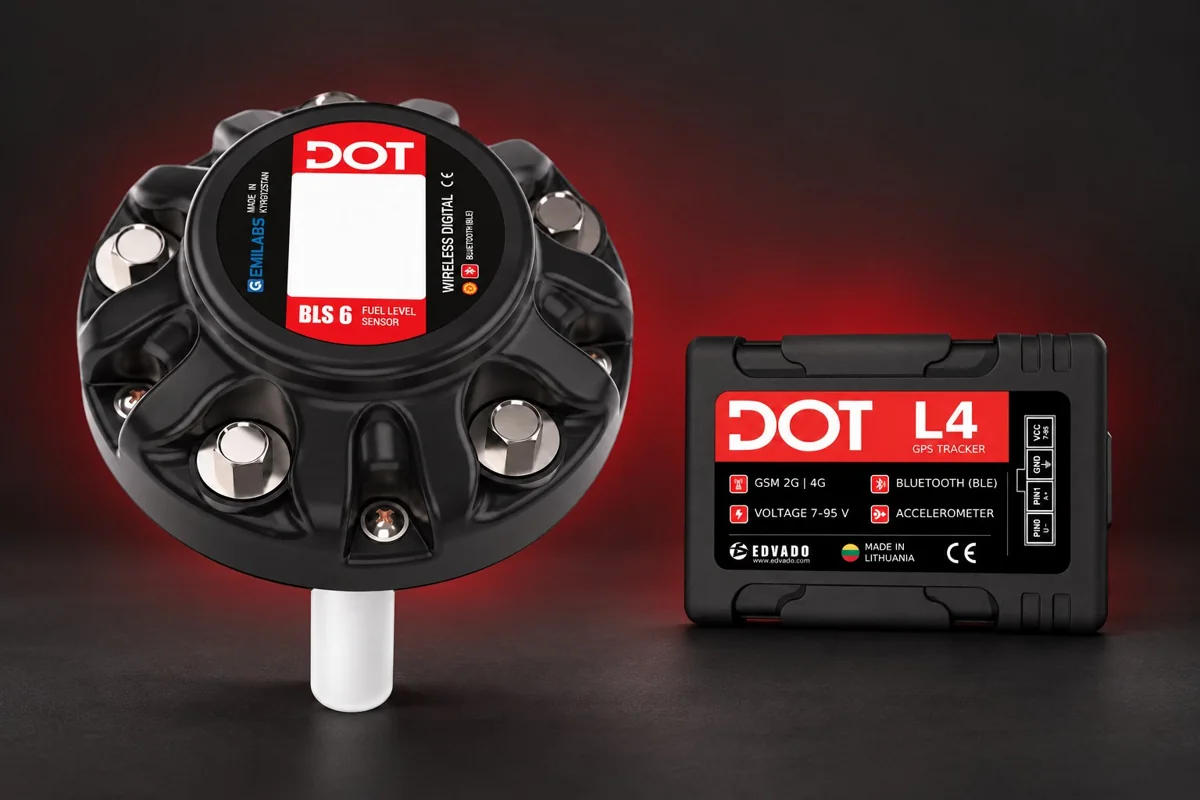

DOT BLS v.6
Wireless capacitive fuel level sensor for monitoring gasoline and diesel fuel in vehicle tanks.
≤1%Measurement error
300–1000 mmMeasuring section
7 years · deviceDevice service life
−40 to +70 °COperating temperature
Built for monitoring
Why DOT BLS v.6
Wireless capacitive fuel level sensor for monitoring gasoline and diesel fuel in vehicle tanks.
Wireless connection
Bluetooth 5.3 with compatibility across BLE 4.0–5.3.
Independent power
Replaceable ER17335 battery. The manual specifies a device service life of 7 years, not battery runtime.
Mobile setup
Sensor Configurator app for calibration, configuration and diagnostics.
Specification information
Specifications are based on the available manufacturer manuals. Features not described in those documents are not confirmed.
Not specified: absent from sources. Not confirmed: catalog claim without a technical document. Not supported: explicitly excluded by the manufacturer.
User manual
Technical specifications
Specifications below are taken from the supplied device manual.
Measurement and installation
- Measurement principle
- Capacitive
- Liquids
- Gasoline and diesel fuel
- Measuring section
- 300–1000 mm
- Measurement error
- ≤1%
- Operating temperature
- −40 to +70 °C
- Weight (1 m version)
- 400 g
Wireless and power
- Bluetooth
- 5.3 · compatible with 4.0–5.3
- Wireless range (open space)
- 10–20 m
- Battery
- Replaceable ER17335 · 3.6 V
- Current consumption
- 20 µA
- Device service life
- 7 years — device service life; battery runtime is not specified
- Additional sensors
- Built-in temperature sensor and accelerometer
Additional specifications
- Security seal attachment point
- Provided
- Electrical protection
- Class III (GOST 12.2.007.0–75)
- Firmware updates
- Supported
- Configuration and diagnostics
- Sensor Configurator mobile app for Android and iOS
- Conductive liquids
- Not supported: water and other electrically conductive liquids
- Explosion-proof applications
- Not supported: tanks requiring explosion-proof equipment
DOT BLS v.6
Support for DOT BLS v.6
The original manual is available in English as a PDF.
Get StartedConnection and setup
- Install the sensor in a suitable gasoline or diesel tank, preferably near the centre.
- Cut the measuring tube to the tank height minus 15 mm; keep its length at least 300 mm.
- Calibrate and configure the sensor in the Sensor Configurator mobile app.
- Follow the full mounting and safety procedure in the manual.
Knowledge BaseTechnical information
The manual explains capacitive measurement, tank installation, tube cutting, calibration and Bluetooth configuration. Not intended for water, conductive liquids or explosion-proof tanks.
